Tin Plated Elbow

Material:
High-Conductivity Wrought Copper

Finish:
Electro Tin Plate

ManufacturerColorCodeTools Model
T&B----TBM5-SV TBM5V
Panduit------
Burndy----PATMD6 Y35 Y750
Celestra----A45
Download Catalog
Item
Cat.No
Wire Size
Code
Flex Class G,H,I,K,M

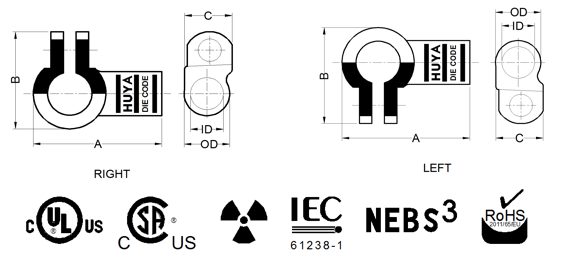

Dimension (in.)
A
B
C
ID
OD
T1056AL0
1.90
1.39
0.62
0.44
0.56
T1056AL1
1.95
1.42
0.62
0.44
0.56
T1056AR0
1.90
1.28
0.62
0.44
0.56
T1056AR1
1.95
1.42
0.62
0.44
0.56
T2056AL0
1.81
1.38
0.68
0.46
0.63
T2056AL1
1.99
1.46
0.68
0.46
0.63
T2056AR0
1.90
1.42
0.68
0.46
0.63
T2056AR1
1.99
1.46
0.68
0.46
0.63
T3056AL0
1.90
1.46
0.72
0.56
0.70
T3056AL1
1.95
1.46
0.72
0.56
0.70
T3056AR0
1.90
1.46
0.72
0.56
0.70
T3056AR1
2.00
1.46
0.72
0.56
0.70
T4056AL0
1.96
1.50
0.78
0.63
0.77
T4056AL1
2.05
1.55
0.78
0.63
0.77
T4056AR0
1.90
1.40
0.78
0.63
0.77
T4056AR1
2.00
1.55
0.78
0.63
0.77
