AM-32
Material:
ALUMINUM, TIN PLATED
Item
Cat.No
Wire Size
Code
Flex Class G,H,I,K,M

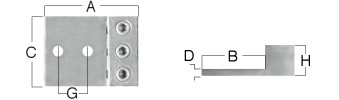

Dimension (in.)
A
B
C
D
G
H
AM0214-32
#14-#2
2.49
2.03
1.62
0.18
0.87
0.46
AM1012-32
#14-#1/0
2.94
2.31
1.93
0.18
1.00
0.62
AM1151-62
500 kcmil,600 kcmil,700 kcmil,750 kcmil,800 kcmil,900 kcmil,1000 kcmil
6.19
3.44
4.74
0.55
1.75
1.87
AM2506-32
#6-250
4.19
3.06
2.80
0.24
1.75
1.24
AM3006-32
#6-#3/0
4.19
3.38
2.80
0.24
1.75
0.80
AM3506-32
#6-350
4.19
3.06
2.99
0.24
1.75
1.24
AM6102-32
#2-600
4.69
3.31
3.74
0.43
1.75
1.55
AM8135-62
350-800
6.19
3.44
4.24
0.55
1.75
1.87
